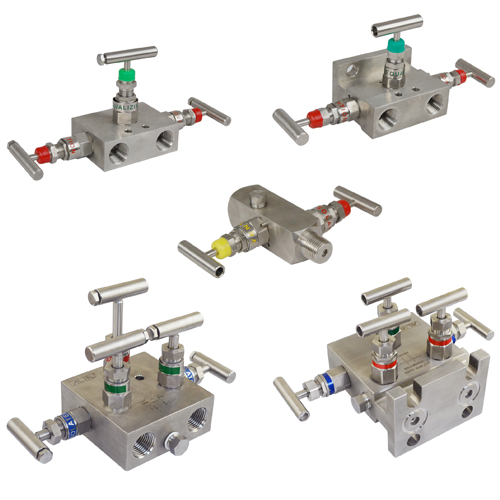

- All 316 Stainless steel construction
- Convenient method for blocking, exhausting, and calibrating pressure instruments
- Flange seals and flange bolts are included with manifold
- Designed for connecting system impulse line & transmitter
- Special hardened ball seat is ideal for both gas and liquid service
- All stem packing is located below to stem threads presenting galling, corrosion and contamination
- One piece construction for higher pressure
| Double Block & Bleed Gauge Valves | ||
| Model | : | AHV426N |
| Test Pressure | : | @25 °C Room Temperature |
| Hydrostatic | : | Body-620 bar |
| : | Seat-415 bar | |
| Pneumatic | : | Seat-40 bar |
| Gland Packing | : | PTFE |
| Material | ||
| Body | : | Stainless Steel 316 |
| Wetted Parts | : | Stainless Steel 316 |
| Plate | : | Stainless Steel 316 |
| Max. Temperature | : | 180 °C |
| Connections | ||
| Process | : | 1/2″ NPT (Male) |
| Instrument | : | 1/2″ NPT (Female) |
| Remote Mounted 3-, 5-Valve Manifold | ||
| Model | : | AHV436N / AHV456N |
| Test Pressure | : | @25 °C Room Temperature |
| Hydrostatic | : | Body-620 bar |
| : | Seat-415 bar | |
| Pneumatic | : | Seat-40 bar |
| Gland Packing | : | PTFE |
| Material | ||
| Body | : | Stainless Steel 316 |
| Wetted Parts | : | Stainless Steel 316 |
| Plate | : | Stainless Steel 316 |
| Max. Temperature | : | 180 °C |
| Connections | ||
| Process | : | 1/2″ NPT (Female) |
| Instrument | : | 1/2″ NPT (Female) |
| T-Type Direct Mounting 3-, 5-Valve Manifold | ||
| Model | : | AHV436T / AHV456T |
| Test Pressure | : | @25 °C Room Temperature |
| Hydrostatic | : | Body-620 bar |
| : | Seat-415 bar | |
| Pneumatic | : | Seat-40 bar |
| Gland Packing | : | PTFE |
| Material | ||
| Body | : | Stainless Steel 316 |
| Wetted Parts | : | Stainless Steel 316 |
| Plate | : | Stainless Steel 316 |
| Max. Temperature | : | 180 °C |
| Connections | ||
| Process | : | 1/2″ NPT (Female) |
| Instrument | : | Direct on instrument |
