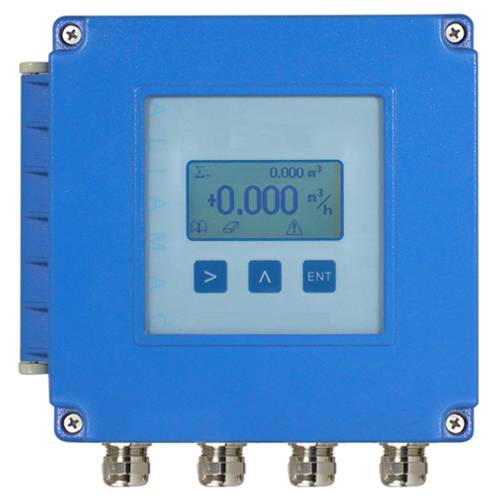

- Three line LCD display Flow Rate / Totalizer
- Accuracy of +/-0.4% value of reading
- Bi-directional flow measurement, current and pulse output
- Large digital display
- MODBUS / HART communication
| Excitation | : | DC pulsed |
| Display | : | 3 Lines LCD with illumination |
| Line 1 | : | 11 Digit totalizer for forward flow |
| : | 11 Digit totalizer for reverse flow | |
| : | 11 Digit totalizer for difference | |
| Line 2 | : | 5 Digit flowrate / velocity / % / mA /Hz |
| Line 3 | : | Parameter / Query / Clr tot / |
| Query LOG / Alarm, Guidance | ||
| Totalizer Unit | : | t, kg, g, lb, Ston, Lton, m3, L, mL, lgal, |
| gal, mgal, bbl, fr3, a-ft | ||
| Time Unit | : | sec, min, hour, day |
| Measuring Range | : | Min. 0-0.15 m/s |
| : | Max. 0-15 m/s | |
| Accuracy | : | +/-0.4% of reading (Velocity≥0.5 m/s) |
| : | +/-0.002 m/s (Velocity<0.5 m/s) | |
| Repeatability | : | +/-0.1% of reading |
| Current Output | : | 4-20 mA (Isolated) |
| Load | : | Max. 600 Ω |
| Pulse Output | : | Open collector |
| Rating | : | 3-30 VDC, 20 mA Max. |
| Pulse Rate | : | 1)Scaled pulse (mL/Pulse, L/Pulse, Other) |
| : | 2)Frequency: 0-5000 Hz | |
| Pulse Width | : | 50% of band width |
| Alarm | : | High / Low with open collector output |
| Rating | : | 3-30 VDC, 20 mA Max. |
| Communication | : | RS485 (MODBUS Protocol) |
| : | HART signal (Compatible) |
| Keypad | : | 3 External keys for programming |
| and display control | ||
| Data Storage | : | Operation parameters and totalizer |
| figures are stored by EEPROM for more | ||
| than 10 years | ||
| Low Flow Cutoff | : | 0-9.9% |
| Damping | : | 0-99 Seconds |
| Density Setting | : | 0.1-9.99 g/cm3 |
| Self Diagnosis | : | The following error messages are |
| displayed if failure occurs | ||
| – Coil failure | ||
| – Power failure | ||
| – Overranged output | ||
| – Internal error | ||
| – Overflow | ||
| – Empty pipe | ||
| Cable Entry | : | Standard: PG11 Option: 1/2″ NPTF |
| Protection Class | : | IP65 |
| Ambient Temperature | : | -25~65 °C |
| Material | : | Aluminum Alloy |
| Power Supply | : | 90-260 VAC, 50/60 Hz |
| : | 24 VDC +/-10% (Option) | |
| Power Consumption | : | 3-17 W (Dependent on sensor size) |
| Weight | : | 1.4 kg |
| Mounting | : | Wall mounting |
| : | Bracket on 2″ pipe |
